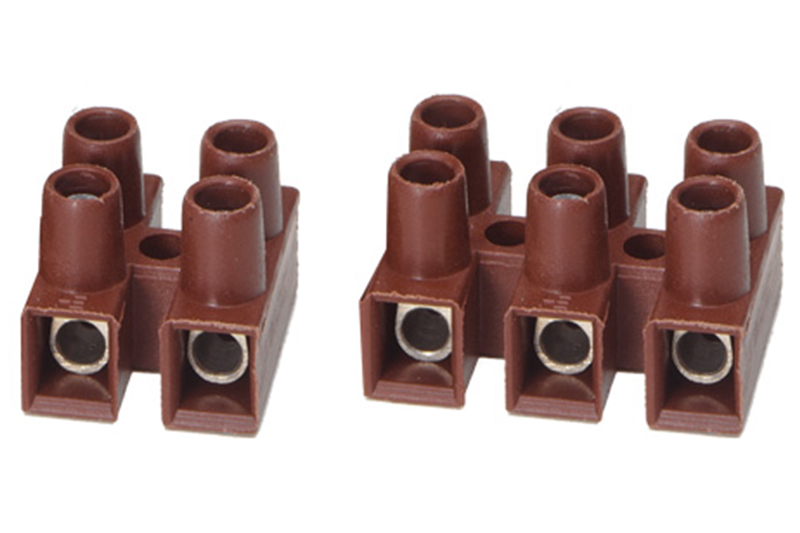

1-12 Way
with and without wire protector
16A 400 V
212PB
212PA
212PN
Mouldings:
Polyamide 6
Polyamide 6 V-2 Natural
Polyamide66 V0 RED
Continuous working temp:
80°C
Short-time temperature:
160°C
Insents:
Brass,tinned
Screws:
M3,5X7mm
Steel, zinc plated,
Max: 0,8 Nm
Conductor Size:
With wire protector up to 6 mm²
Nominal Cross - Section mm²:
6.0
Stripping length:
7,5-8mm
Current Rating:
to EN 60598: 25-41 A
All the products we produce are produced with ISO 9001: 2015, quality management system, ISO 14001 2015 Environmental management system, ISO 45001 worker health safety and management system CE, VDE, SI: 1.1 ISRAEL, TUV Rheinland, REACH is certified with RoHS standards and is under AR-EL guarantee as it is tested with modern laboratory and control equipment equipped with high technology.
